Real-Time Data Ingestion from Kafka to Snowflake

Glenn Gillen

VP of Product, GTM

Quickstarts

Real-Time Data Ingestion from Kafka to Snowflake

If your business is using Kafka there is already a lot of messages travelling through your brokers. If you're also a Snowflake customer it would be great if those messages could make their way into your Snowflake data cloud. Kafka is in your private network, Snowflake in their cloud, and getting data between them isn't entirely straight-foward. It'd be much easier if those two systems could look and feel like they were next to each other.

Today, we're excited to introduce a solution that makes this vision a reality: the Pull from Kafka Connector!

Quick links

Snowflake 💙 Apache Kafka

Apache Kafka (and Kafka-compatible alternatives) is the system of choice for building flexible, scalable, and reliable streaming platforms to connect data producers and consumers. It's often used as the central nervous system for real-time data pipelines and streaming applications.

Snowflake is The Data Cloud and the place to support workloads such as data warehouses, data lakes, data science / ML / AI, and even cybersecurity. This centralization brings a huge amount of convenience through breaking down data silos and allowing teams to make smart data-informed decisions.

Connecting your Kafka broker to Snowflake can be problematic depending on your network topology. It would be convenient to give the broker a public address, but that's a significant increase in risk for a system that handles a lot of important data. Managing IP allow lists and updating firewall ingress rules improves security but can be cumbersome to manage. Alternatives like PrivateLink are better, but they too can be cumbersome to setup and require your systems to be on the same public cloud and in the same region.

In this post I'm going to show you how to securely connect Snowflake to your private Apache Kafka broker, in just a few minutes. We will:

Setup a managed Kafka cluster in AWS
Prepare Snowflake to receive data from Kafka
Connect Snowflake to Kafka with a private encrypted connection - without needing to expose either system to the public internet!

The final architecture diagram will look like this:

Amazon Managed Streaming for Kafka (MSK)

We're going to provision an MSK cluster so we can see an end-to-end experience of data moving from Snowflake to Kafka. If you have an existing Kafka broker you're able to use you can skip this step.

Create an MSK cluster

Within your AWS Console search for MSK in the search field at the top and select the matching result. Visit the Clusters screen, and then click Create Cluster.

The Quick Create option provides a good set of defaults for creating a Kafka cluster, so unless you've previous knowledge or experience to know you might want something different I'd suggest just confirming the details and then clicking Create cluster at the bottom of the screen.

Once you've started the cluster creation it may take about 15 minutes for provisioning to complete and for your broker to be available.

Connect Snowflake to Kafka

Create a table to capture data

Run the code here in a Snowflake worksheet. It will create a new table.


_10CREATE OR REPLACE TABLE CUSTOMERS (
_10  key STRING,
_10  id INTEGER,
_10  name STRING,
_10  email STRING
_10);

We've created a table, Kafka is running. It's now time to connect the two! The next stage is going to complete the picture below, by creating a point-to-point connection between the two systems — without the need to expose any systems to the public internet!

Launch the Snowflake Native App

The Snowflake Pull from Kafka Connector by Ockam is available in the Snowflake Marketplace.

Select a warehouse

The first screen you're presented with will ask you to select the warehouse to utilize to activate the app.

Grant account privileges

Click the Grant button to the right of this screen. The app will then be automatically granted permissions to create a warehouse and create a compute pool.

Activate app

Once the permissions grants complete, an Activate button will appear. Click it and the activation process will begin.

Launch app

After the app activates you'll see a page that summarizes the privileges that the application now has. There's nothing we need to review or update on these screens yet, so proceed by clicking the Launch app button.

Setup Ockam

Option 1 - Run an Ockam node next to Kafka via the AWS Marketplace

The Ockam Node for Amazon MSK is a streamlined way to provision a managed Ockam Node within your private AWS VPC. If you'd prefer the ability to deploy your Ockam Node yourself (for example on an existing machine or in a container) jump to our instructions on how to run an Ockam Node manually.

To deploy the node that will allow Snowflake to reach your Kafka broker visit the Ockam Node for Amazon MSK listing in the AWS Marketplace, and click the Continue to Subscribe button, and Continue to Configuration.

On the configuration page choose the region that your Amazon MSK cluster is running in, and then click Continue to Launch followed by Launch.

Enter stack details

The initial Create Stack screen pre-fills the fields with the correct information for your node, so you can press Next to proceed.

Enter node configuration

This screen has important details to you need to fill in:

Stack name: Give this stack a recognisable name, you'll see this in various locations in the AWS Console. It'll also make it easier to clean these resources up later if you wish to remove them.
VPC ID: The ID of the Virtual Private Cloud network to deploy the node in. Make sure it's the same VPC where you've deployed your Amazon MSK cluster.
Subnet ID: Choose one of the subnets within your VPC, ensure MSK has a broker address available in that subnet.
Enrollment ticket: Copy the contents of the kafka.ticket file we created earlier and paste it in here.
Amazon MSK Bootstrap Server with Port: In the client configuration details for your Amazon MSK cluster you will have a list of bootstrap servers. Copy the hostname:port value for the Private endpoint that's in the same subnet you chose above.
JSON Node Configuration: Copy the contents of the kafka.json file we created earlier and paste it in here.

We've now completed the highlighted part of the diagram below, and our Kafka broker node is waiting for another node to connect.

Ockam node for Amazon MSK - create stack screen

Ockam node for Amazon MSK - node configuration screen

Option 2 - Run an Ockam Node next to Kafka manually

Connect the Ockam node in Snowflake

One end of our connection is now setup, it's time to connect the Snowflake end. We need to generate an enrollment ticket to allow another Ockam Node to join our project. This node will run in our Snowflake warehouse:


_10ockam project ticket \
_10  --usage-count 1 --expires-in 2h \
_10  --attribute snowflake > snowflake.ticket

Configure connection details

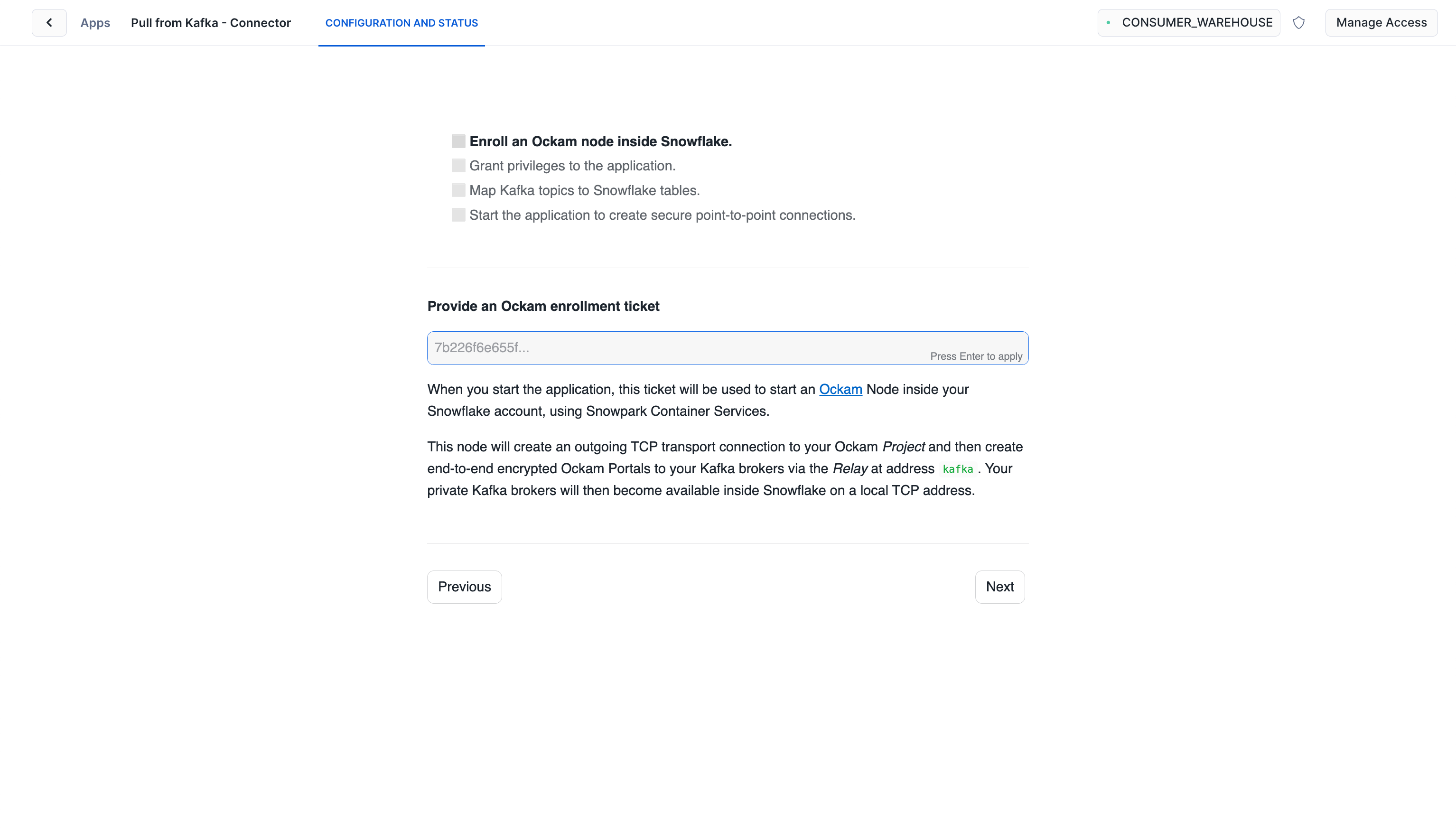

Take the contents of the file snowflake.ticket that we just created and paste it into "Provide the above Enrollment Ticket" form field in the "Configure app" setup screen in Snowflake.

Grant privileges

To be able to authenticate with Ockam Orchestrator and then discover the route to our outlet, the Snowflake app needs to allow outbound connections to your Ockam project. Toggle the Grant access to egress and reach your Project and approve the connection by pressing Connect.

Toggle the Grant access to the tables where Kafka messages must be inserted and select the CUSTOMERS table.

Map Kafka topics to Snowflake tables

Enter the name of the Kafka topic you want to map to the Snowflake table. In this example, the topic is customers.

Check "Messages are encoded with a schema" if you have a schema registry and the messages are encoded with a schema. The configuration to use to Launch Ockam node for Amazon MSK will need to be updated to include the schema registry details. Update $SCHEMA_REGISTRY_ADDRESS with the address of the schema registry. Make sure the ockam node has access to the schema registry.


_13{
_13    "http-server-port": 23345,
_13    "relay": "kafka",
_13    "kafka-outlet": {
_13      "bootstrap-server": "$BOOTSTRAP_SERVER_WITH_PORT",
_13      "allow": "snowflake"
_13    },
_13    "tcp-outlet": {
_13      "to": "$SCHEMA_REGISTRY_ADDRESS:9081",
_13      "from": "schema_registry",
_13      "allow": "snowflake"
_13    }
_13  }

Update other options from default values if needed.

With that, we've completed the last step in the setup. We've now got a complete point-to-point connection that allows our Snowflake warehouse to securely pull data through to our private Kafka broker.

Seeing it in action

Any updates to your data in your Kafka topic will now create a new row in your Snowflake table.

Post the below message to the Kafka topic to verify the setup.

Replace $BROKER_ADDRESS with your actual Kafka broker address, and ensure the topic name (customers in this example) matches the one you've configured in your Snowflake Pull from Kafka Connector setup


_10echo '{"key": "customer123", "id": 1001, "name": "John Doe", "email": "john.doe@example.com"}' | \
_10kafka-console-producer --broker-list $BROKER_ADDRESS:9092 --topic customers

The Snowflake connector will then pull these messages from Kafka and insert them into your CUSTOMERS table, mapping the JSON fields to the corresponding columns.

Wrap up

It's all done! In the course of a few minutes we've been able to:

Setup an Ockam node next to our Kafka broker.
Start an Ockam node within Snowflake.
Establish an Ockam Portal between our nodes — a secure point-to-point connection that is mutually authenticated with end-to-end encryption. With regular and automatic rotation of the encryption keys.
Then use the secure portal to consume messages from our private Kafka broker and load them directly into a Snowflake table.

We've been able to achieve all of this without the need to expose our Kafka broker to the public internet, update firewall ingress rules, setup a VPN, or manage IP allow lists.
